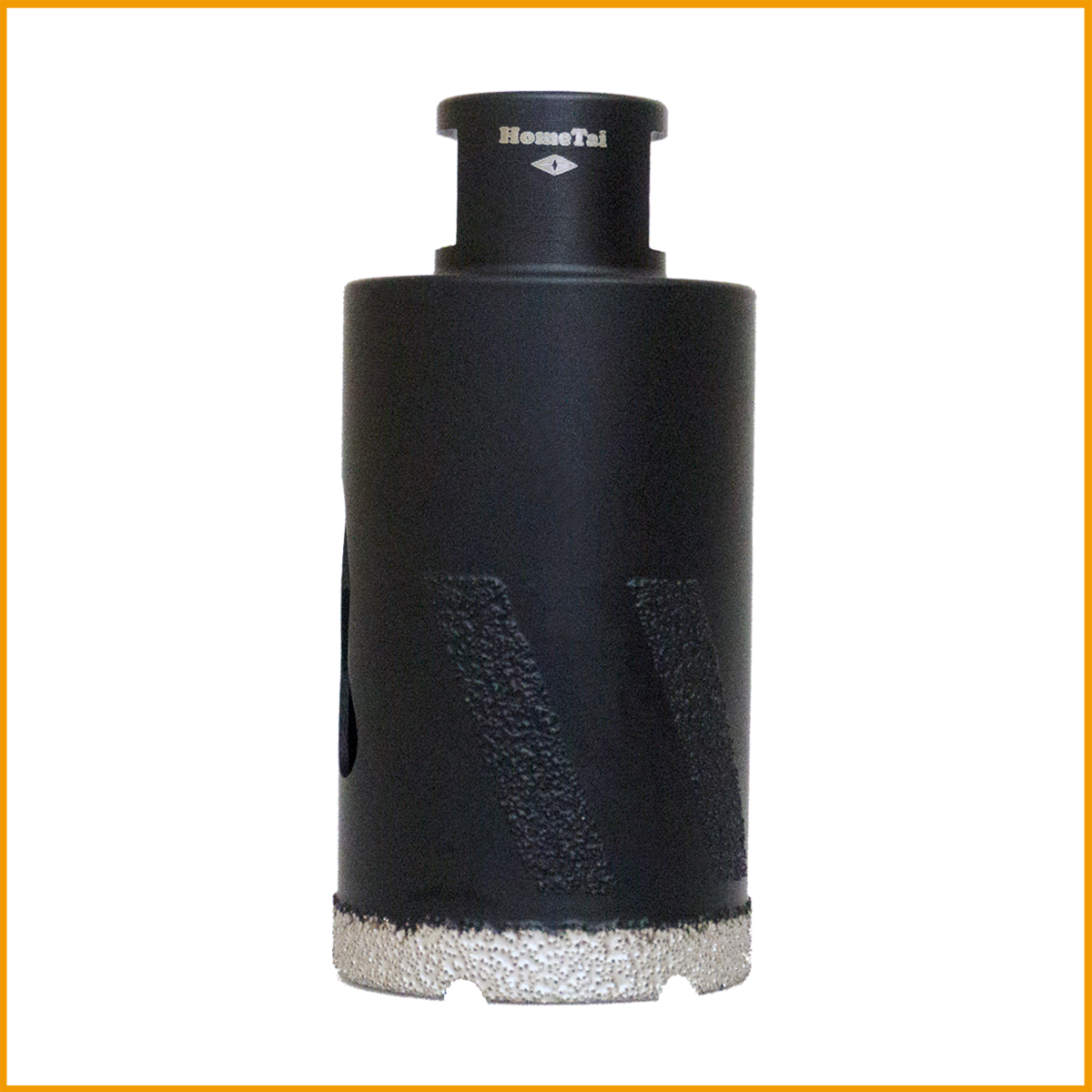

Vacuum Brazed Diamond Core Bit 2″
Product Code: DC0200
Box Quantity : 12 Pcs
Carton Quantity : 60 Pcs
- Tool type: Angle grinder .
- Base material: Glass, Ceramic Tile, Marble, Natural Stone, Granite .
- Performance level: Premium
- Wet or dry operation: Wet and Dry Cutting
- The Thread 5/8-11 .
- The hometai 2 inch Vacuum Brazed Diamond Core Bit for up to greater durability and toughness delivers up to 10x longer life .
- Higher grade diamonds and improved braze provide best-in-class performance .
- Diamond Powerful Drill Bit deliver best-in-class performance, with higher grade diamonds for maximum heat and fracture resistance .
- The Thread 5/8-11 Recommended Machine angle grinder .
- Use low rpm with minimal pressure, without chipping or breaking the material .
- Versatile ideal for cutting anchoring and clearance holes in all tile, stone and glass .
- Lubricate with water for cool cutting, ensures long life .
- If you fit them on drill or other machine, you need an adapter, such as SDS, hex, Round plus shank .
- The hometai Vacuum Brazed Diamond Drill core bits for Operation Tips .
- Start drilling as per following instructions .
- Do not use these drill bits with hammer mode .
- Place the drill at a 45 degree angle .
- Drilling till the hole start to form .
- Bring the drill up into upright position .
- Continue to drill and swaying the machine along a circle .
- Tool type ：Angle grinder .
- Performance level：Premium
- Wet or dry operation：Wet and Dry
- Diameter : 2 inch ( 51.0mm )
- Arbor Size : Thread 5/8-11
- Overall length : 4-1/8 inch ( 105 mm )
- Max Rpm : 13600
- Segment height：10 mm
- Usable segment height：9 mm
- Base material：Porcelain tile , Glass , Granite, Concrete, Natural Stone, Slate , Brick .
- Always wear approved eye protection .
- Always wear approved gloves .
- Always use angle grinder, electric cutter with double-sided guard .
